E Screen™ 1%

E Screen™ 1% is a high-performance basketweave solar screen designed for elite glare control and privacy. Engineered from a robust fiberglass and vinyl core, this 1% openness fabric blocks approximately 99% of UV rays while providing a clear, filtered view of the exterior, making it the ideal choice for high-exposure commercial and residential windows.

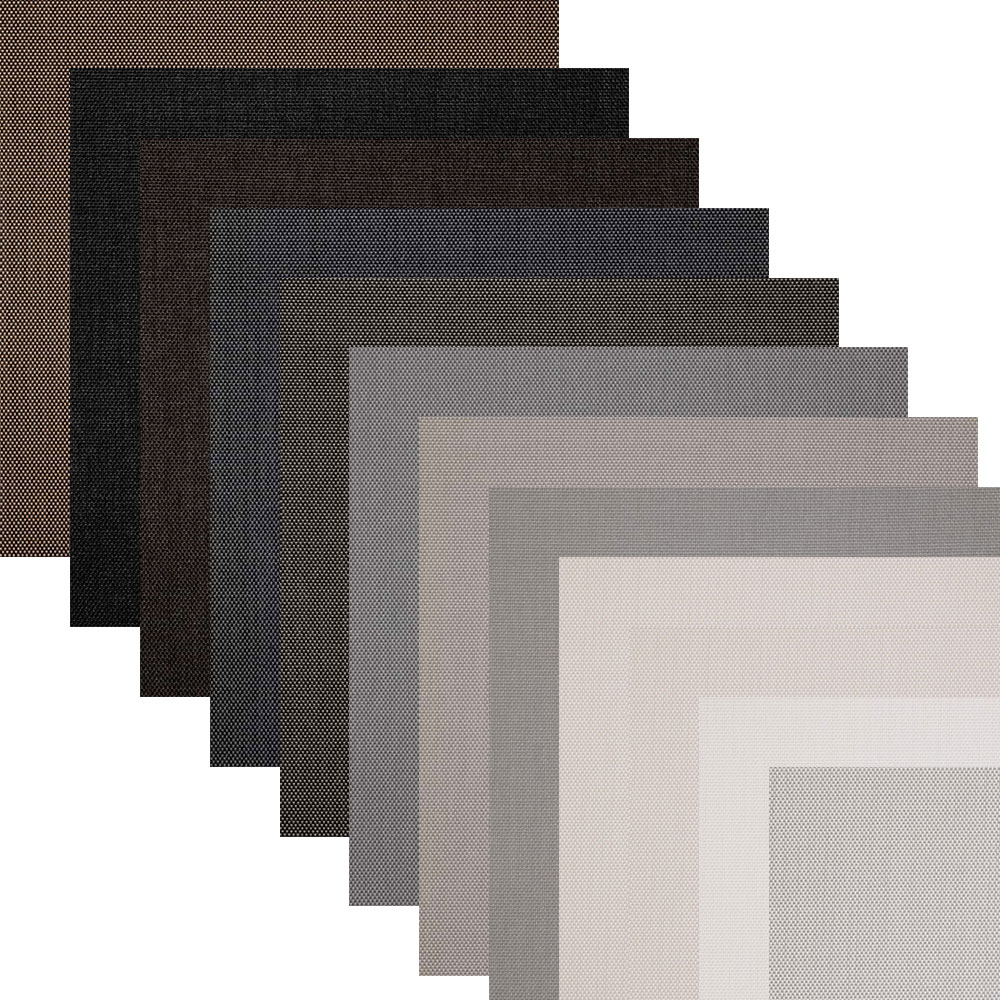

Color

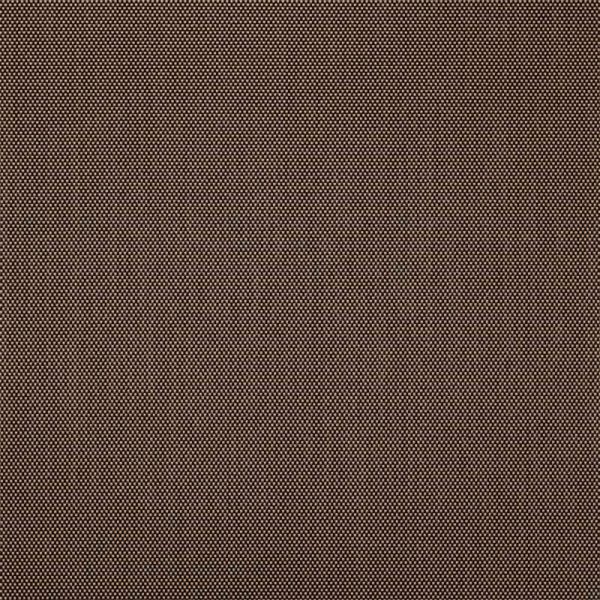

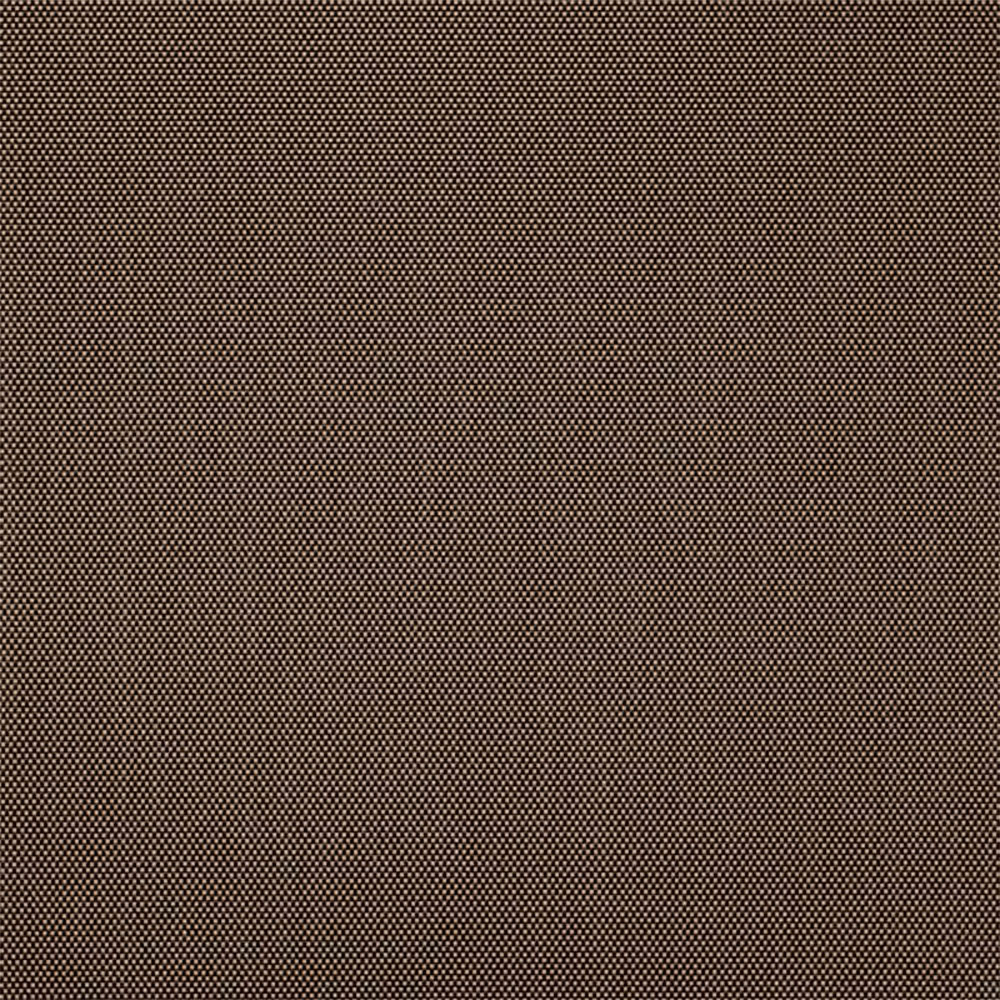

Charcoal Apricot

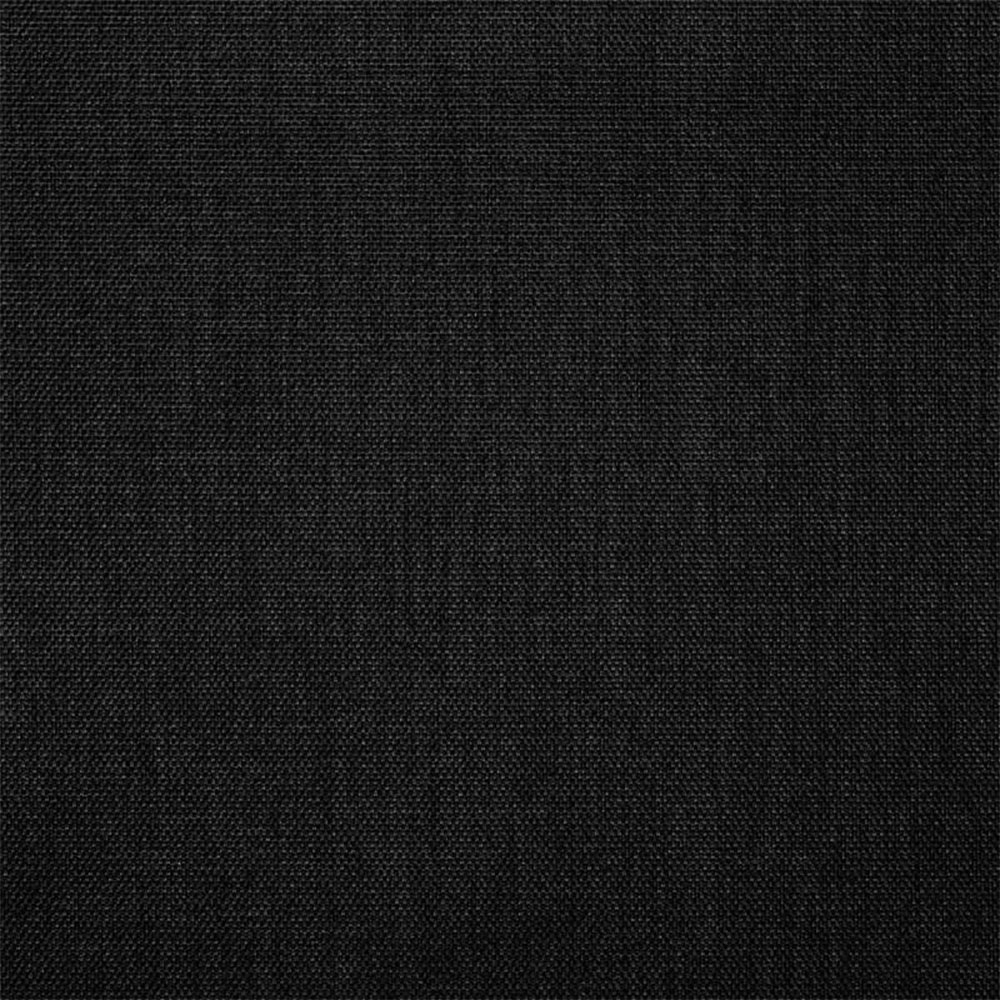

Charcoal Charcoal

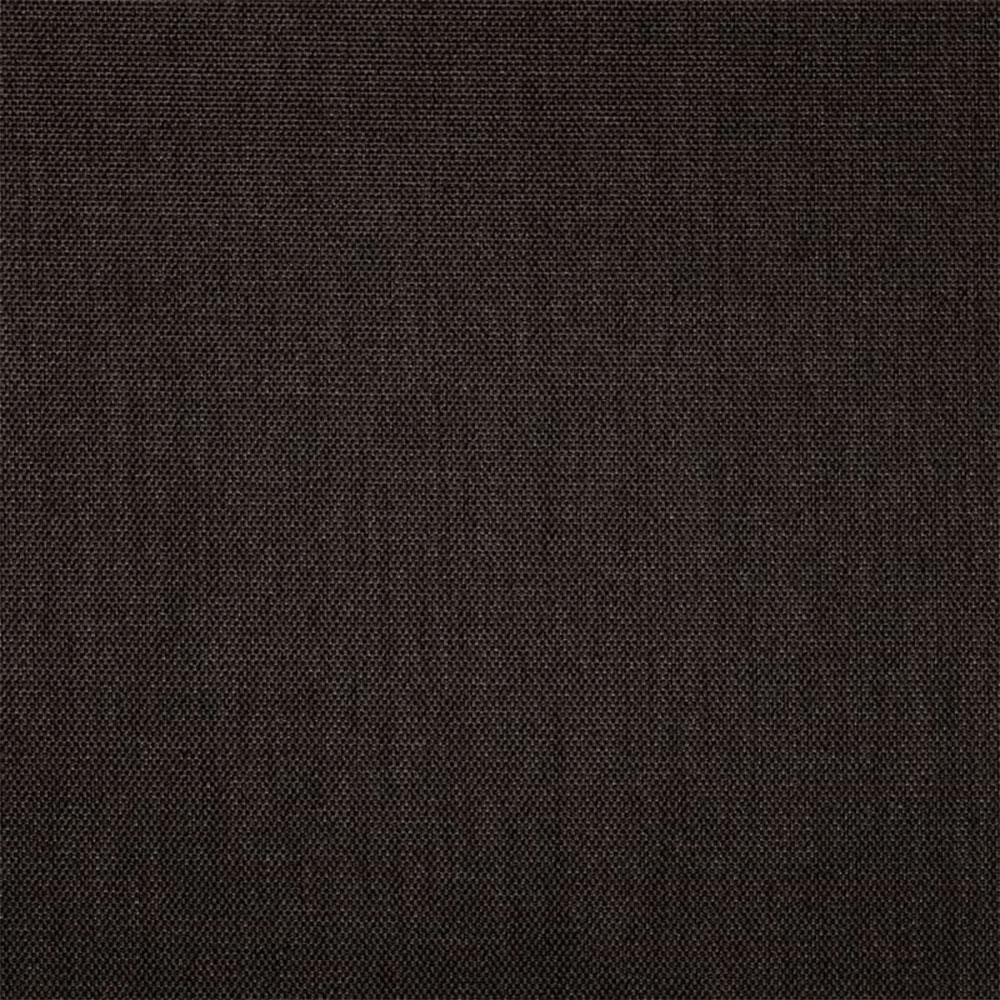

Charcoal Cocoa

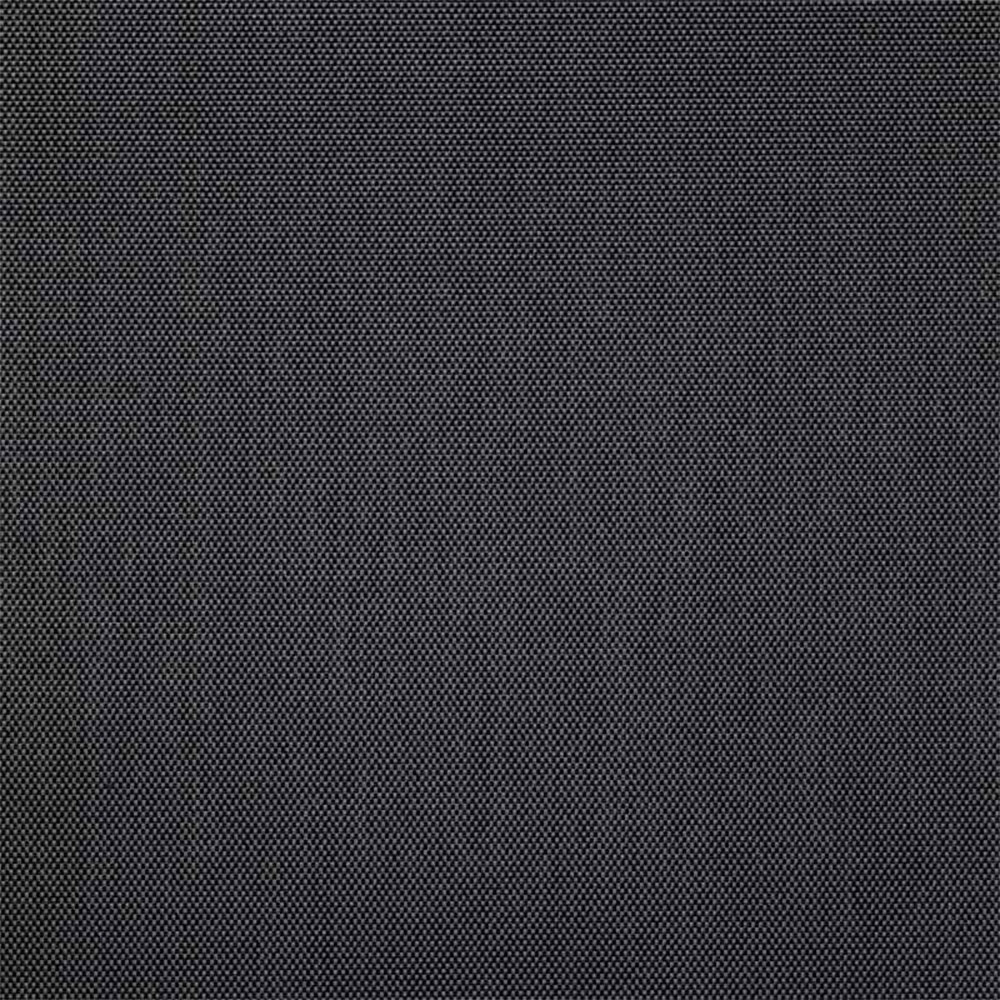

Charcoal Grey
Charcoal Grey-Stone

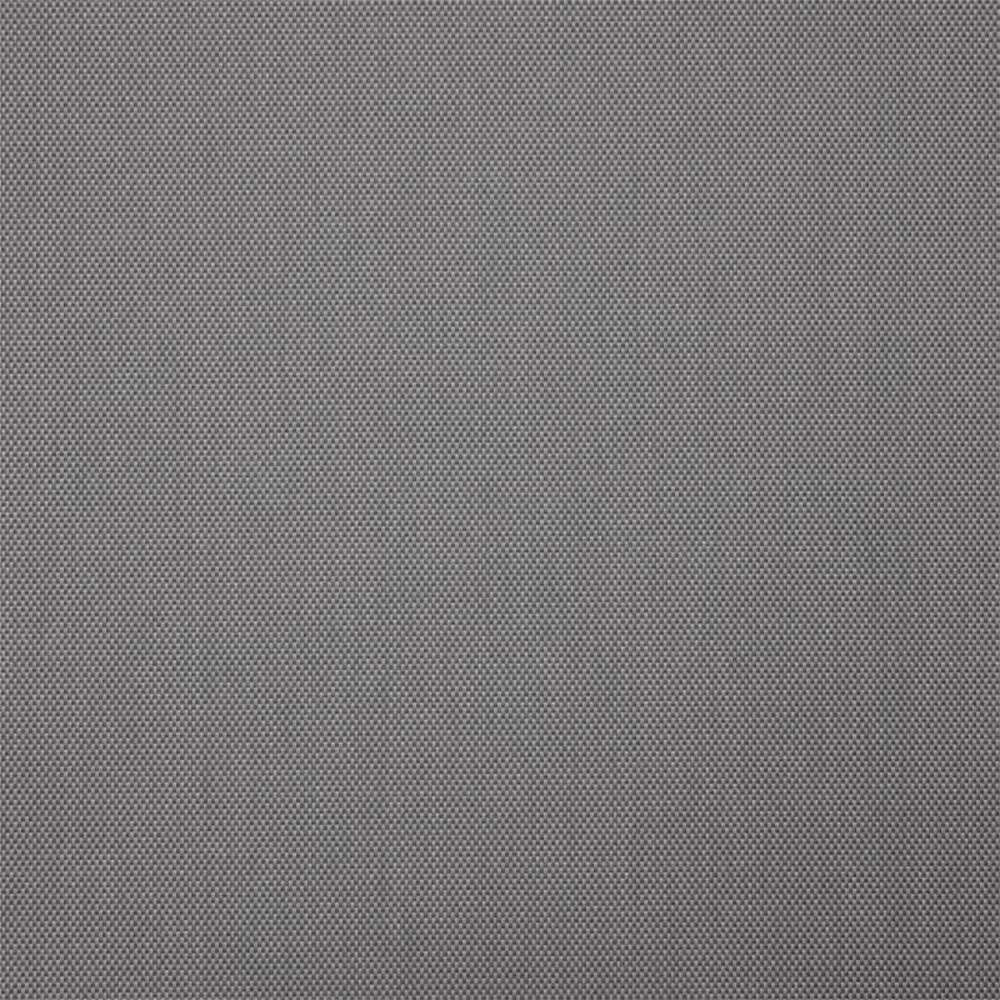

Pearl Grey

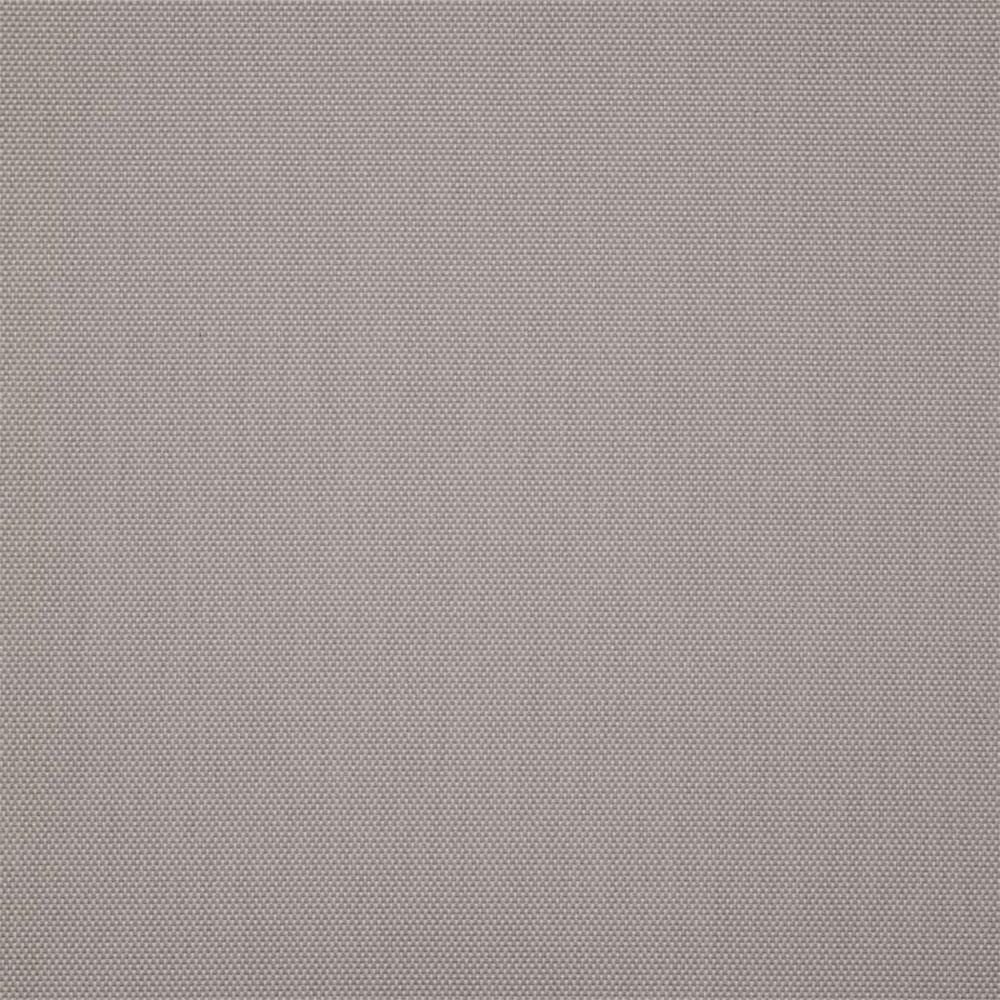

Pearl Linen

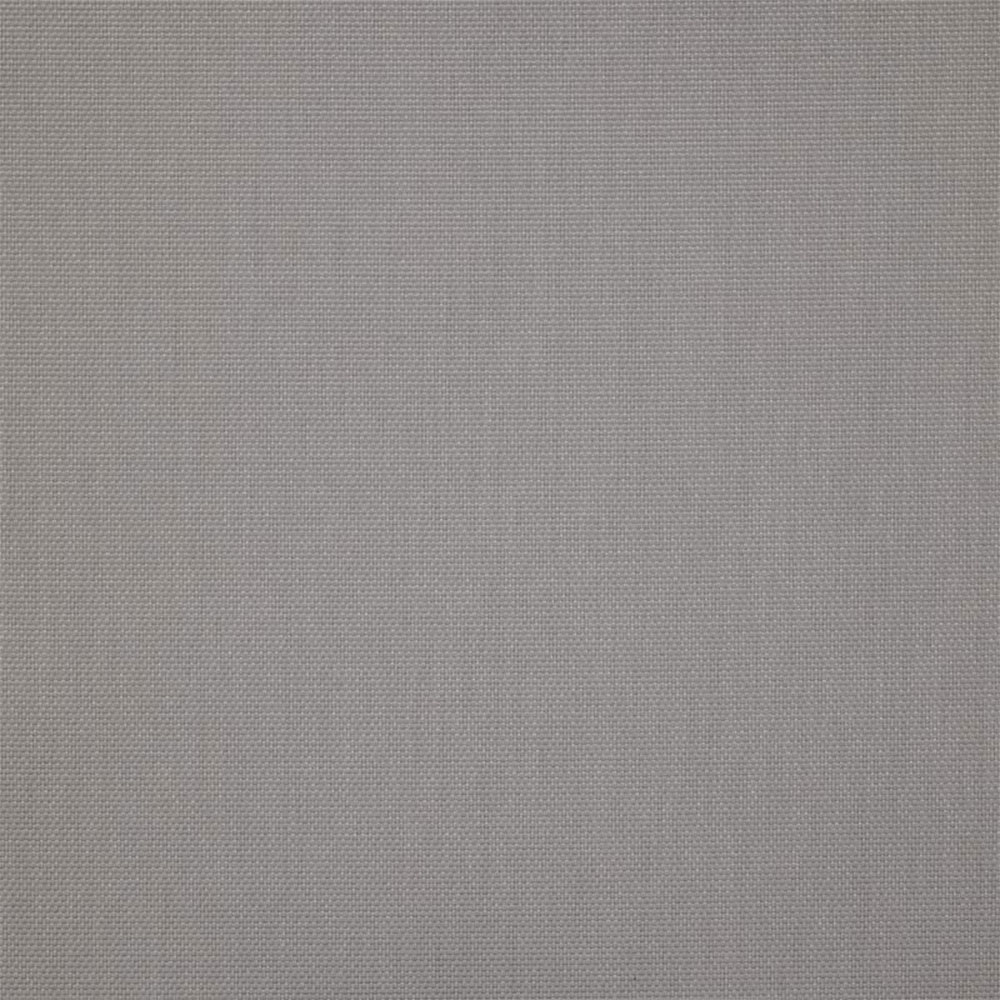

Pearl Pearl

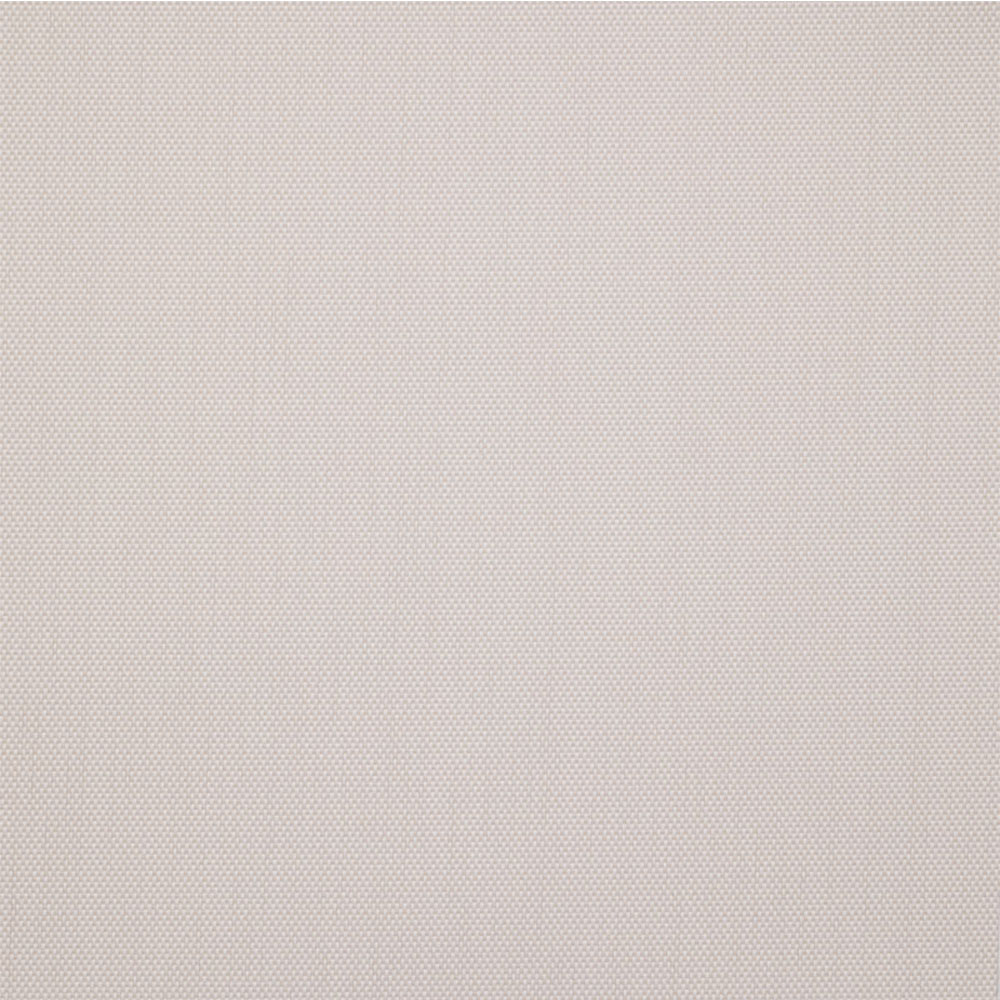

White Linen

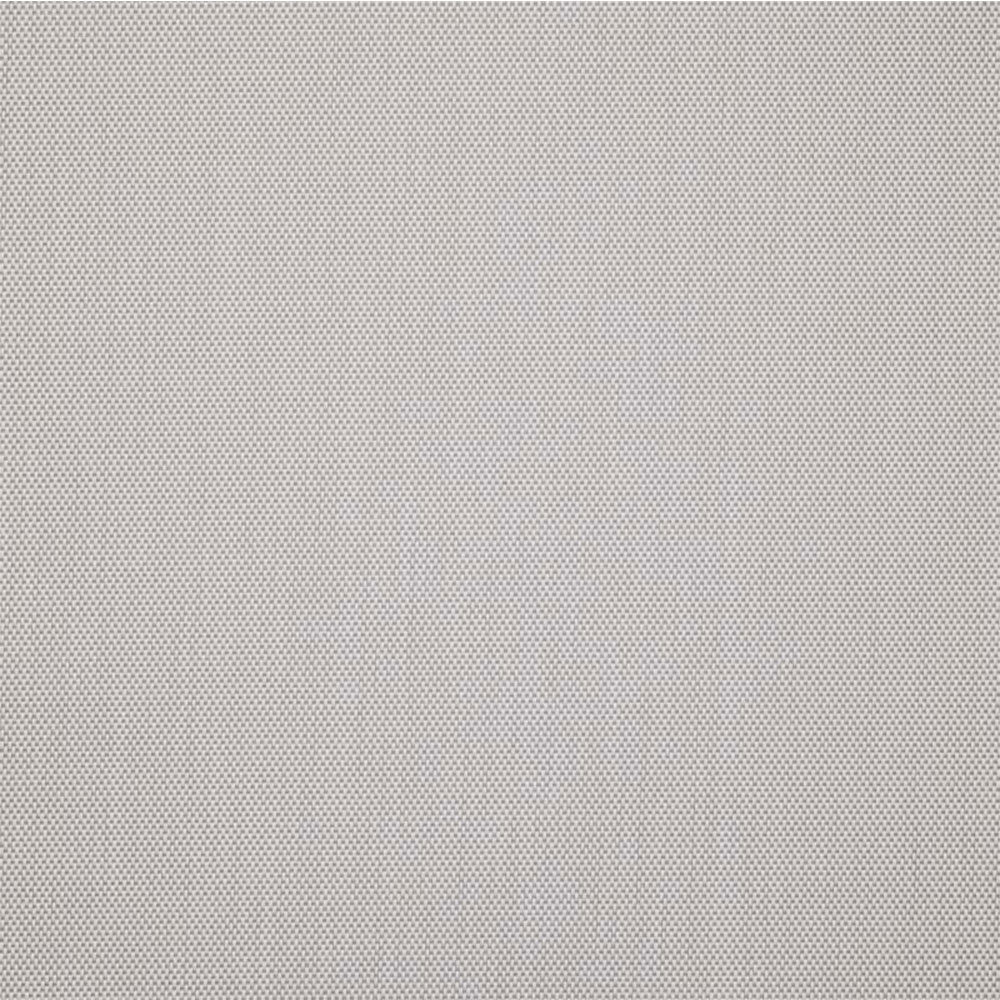

White Pearl

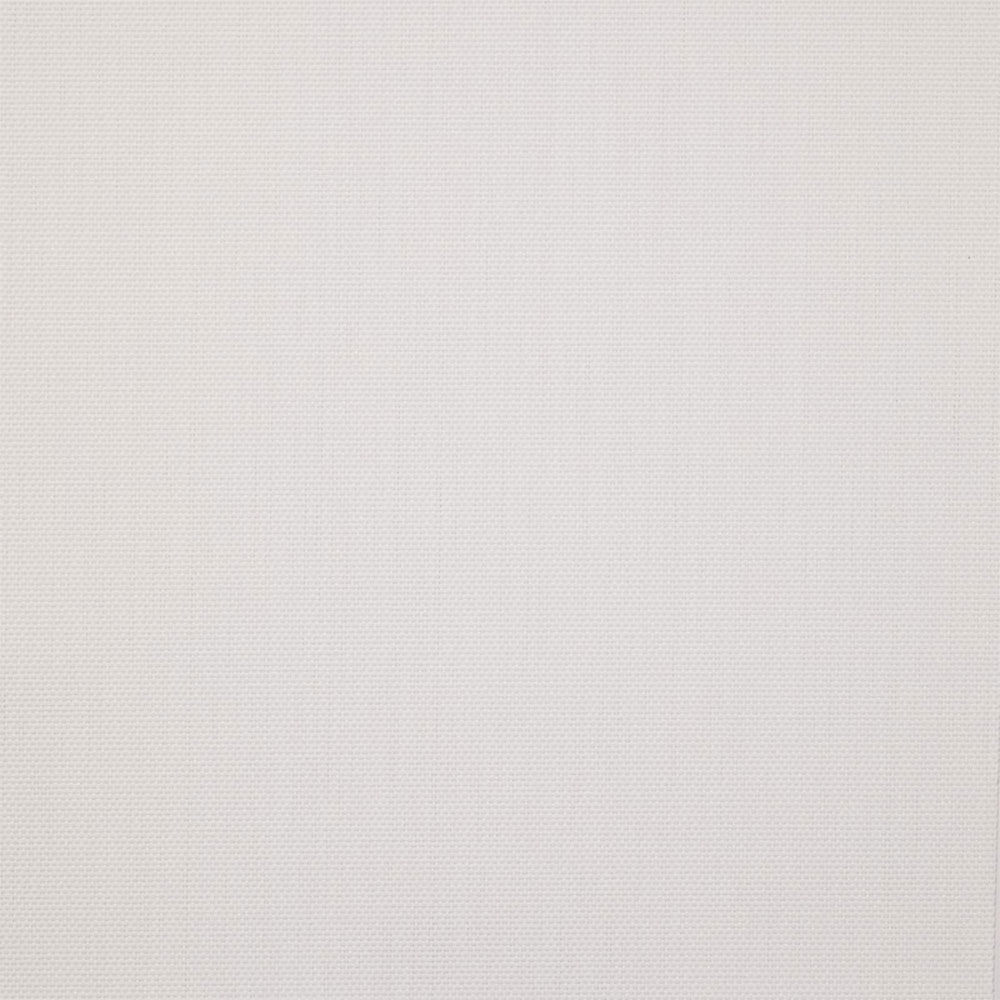

White White

Openness

Mermet

Pattern

E Screen™

Clear

Add to Sample Board Download Specs

The E Screen™ 1% series represents the industry standard for precision sun control textiles. Featuring a classic 2×2 basketweave, this fabric is meticulously designed to optimize the “latter” stage of interior comfort by significantly reducing solar heat gain and eliminating screen glare in workspaces and living areas.

Composed of 36% fiberglass and 64% vinyl, E Screen™ 1% provides exceptional dimensional stability and longevity. Its 1% openness factor is the “essential” specification for south and west-facing elevations where thermal performance and UV protection (99%) are non-negotiable. Whether for executive offices or media rooms, E Screen™ 1% delivers a sophisticated architectural look with mission-critical performance.

Superior Privacy: Low openness factor provides high daytime discretion.
Bacterial Resistance: Treated for ASTM E2180 and ASTM G21 standards.
Acoustical Value: High performance with NRC: 0.50 and SAA: 0.50.
Sustainable Design: Lead-free, RoHS compliant, and GREENGUARD Gold certified.

Executive Offices and Boardrooms
Residential Media Rooms
High-Exposure Retail Storefronts
Healthcare Facilities requiring bacterial/fungal resistance

Openness	Weight (oz/yd²)	Thickness (Inches)	Available Widths
1%	13.3 ± 5%	0.020 ± 5%	78″, 98″, 122″

Specification	Detail
Fabric Style	Basketweave
UV Blockage	Approximately 99%
Composition	36% Fiberglass / 64% Vinyl
Standard Packaging	Rolls of 34 ly (31 lm)
Fire Classification	NFPA 701 TM#1, CA US Title 19, CAN/ULC-S109

Dusting: Remove dust with a soft duster, cloth, vacuum cleaner, or compressed air. Do not scrub. [cite: 356]
Maintenance: Do not use solvents or any abrasive substance which might damage the coating of the fabric. [cite: 357]
Minor Stains: Clean with a soft cloth, sponge, or soft brush dipped in lukewarm soapy water using mild detergent. [cite: 358]
Drying: Rinse with clean water and leave the blind down until completely dry. [cite: 359]
